Compact installation
A short sensing tip takes up little space in small vessels, pipework and OEM skids. Match insertion depth and mounting to the actual detection point.
LISEN · BAUMER

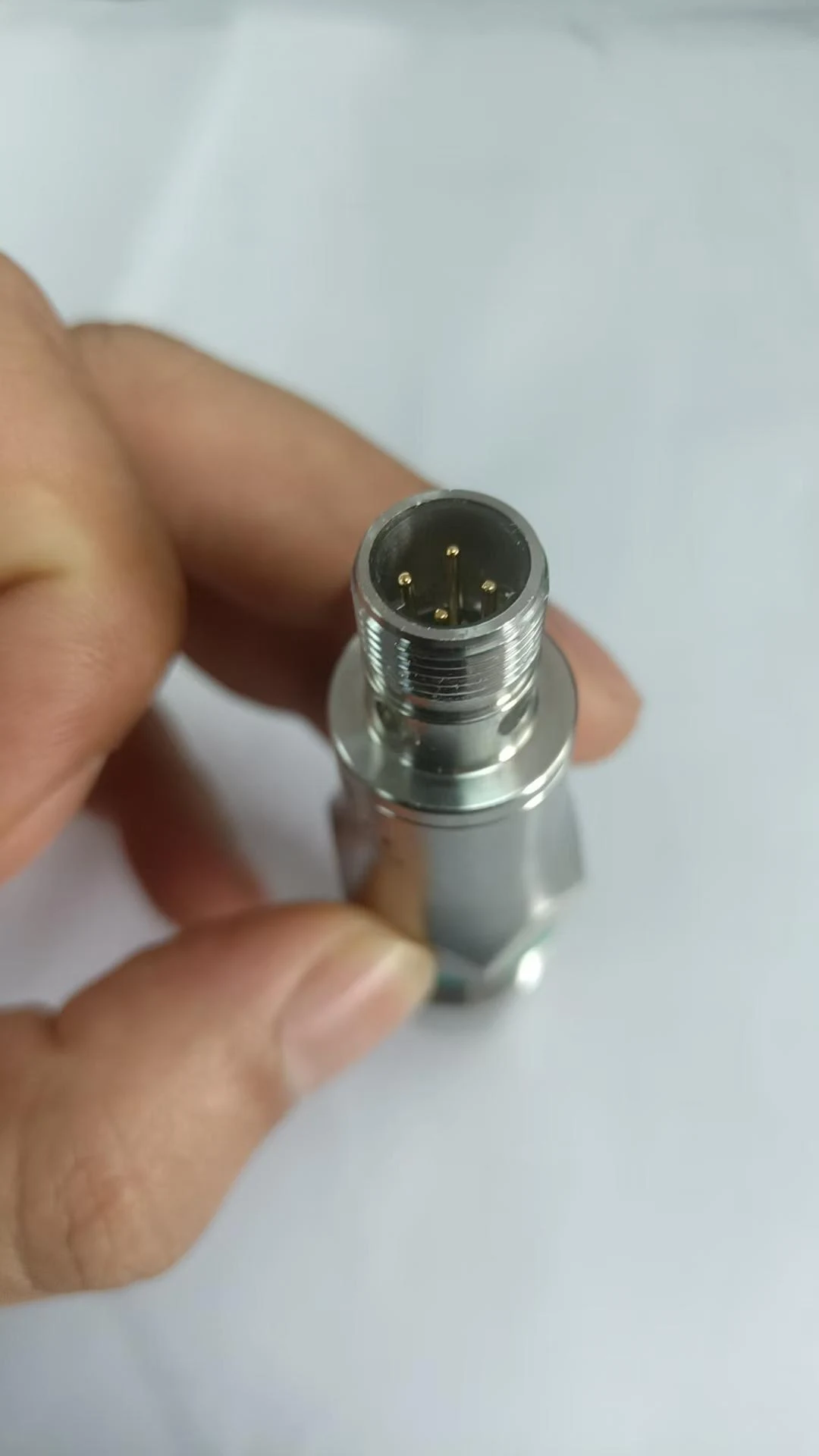

Lisen Electronic Point Level Sensor
A compact electronic Point Level Sensor with a PEEK sensing tip and no moving float. A practical option for industrial high/low detection and liquid-presence signals, with the output and connection configured for your equipment.
OUR OWN BRAND
Specify more than the sensor
A compact electronic Point Level Sensor with a PEEK sensing tip and no moving float. A practical option for industrial high/low detection and liquid-presence signals, with the output and connection configured for your equipment.
Request the process adapter, seal, M12 cable and electrical interface with the sensor. Confirm every supplied item in the quotation; accessories and certificates are not automatically included.
| Parameter | Reference value |
|---|---|
| Supply voltage | 12–30 V DC |
| Switching output | PNP / NPN |
| Maximum output current | 20 mA |
| Process temperature | −40…+115 °C |
| Process pressure | −0.1…10 MPa (−1…100 bar) |
| Wetted materials | PEEK + 316L / Ti (Option dependent) |
| Ingress protection | IP67 |
| Process connection | G ½ (Standard configuration) |
| Electrical connection | M12 · 4-pin |
| Sensing position tolerance | ±5 mm |
Values follow the supplied Lisen manual dated 2024-11-25. High-temperature versions up to 200 °C and custom probes up to 250 mm require separate confirmation. Maximum temperature and pressure must not be combined without an approved operating envelope.
Electrical reference from the supplied manual
The manual states a typical supply current of 8 mA and a maximum of 40 mA. This is separate from the 20 mA maximum switching load. A PLC input or a suitably designed interface is required; the sensor must not drive a pump motor or solenoid directly.
Configuration review
The source manual identifies a G½ connection, M12 four-pin connector and a nominal 99 mm overall drawing length. A high-temperature construction, extended probe, titanium wetted part or alternative process connection is a separate configuration. Request its drawing and simultaneous pressure/temperature limits with the offer.
The supplied material reports are supporting records, not blanket certification of every assembled sensor. Ask for batch traceability and destination-specific documentation where needed.
POINT LEVEL SENSOR / ADVANTAGES
Why choose a Point Level Sensor?
Put a clear process signal where action is needed. The compact electronic families featured here combine a short sensing tip with flexible switching options; advanced media functions depend on the selected model.
No moving float
Electronic detection removes a float mechanism from the sensing assembly, reducing the moving parts to inspect. Deposits and cleaning still need attention.
Clear signals for control
Covered or uncovered status gives the PLC a direct input for filling, emptying or pump permissives. Select the compatible output and switching logic.
High and low level monitoring
Place the detection point at the required threshold to support overfill prevention or pump dry-run protection as part of the complete control system.
Options for challenging media
Selected frequency-sweep models offer configurable or adaptive detection for changing products, foam and residue. Verify the response with your actual medium.
Focused project scope
When one threshold is the requirement, specify the switching point and response directly. Add continuous measurement where inventory or a level display is needed.
Downloads
See the supplied sensor demonstrations
Sample demonstrations show only the recorded test conditions. Confirm suitability with your own medium and operating conditions.
